Narrowband Ad-Hoc Network

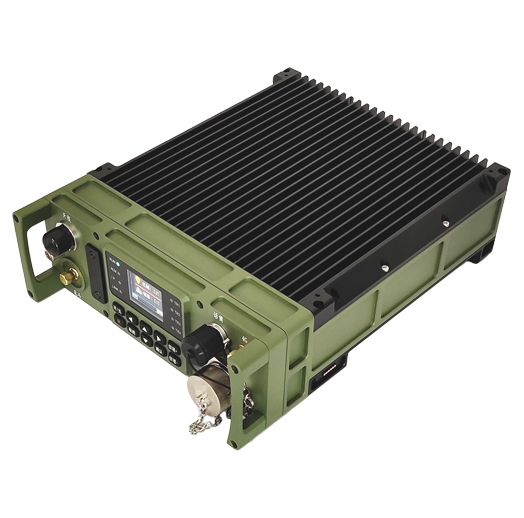

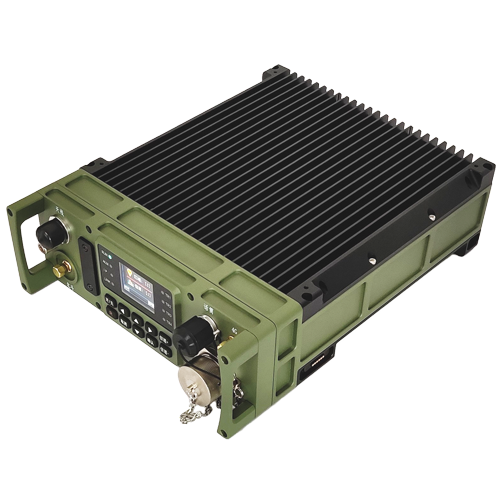

Wireless Narrowband Ad-Hoc Network Terminal Series

A wireless communication network built with Ad-Hoc technology is called a decentralized ad-hoc network. This unique mobile communication system requires no pre-installed infrastructure and can be rapidly deployed. It supports arbitrary topologies (point-to-point, point-to-multipoint, chain relay, mesh, hybrid), multi-hop intelligent routing, and dynamic topology updates without disrupting transmission. Features include flexibility, mobility, adaptability, and high survivability.

The decentralized ad-hoc system maximizes wireless communication capabilities for daily or emergency scenarios, achieving the professional standard of "on-demand deployment and seamless connectivity."

Wide Coverage

Single-hop links cover up to 100 km; supports 32-node ad-hoc networks for large-area coverage and reliable voice communication.

Converged Interoperability

Any node can interconnect with third-party systems via wired, 4G public networks, or satellite links, eliminating data silos.

Multi-Mode Applications

Multi-mode functionality

Plug-and-play operation

DMR/PDT/MDT ad-hoc networkin

Digital same-frequency/cross-frequency relay (supports 4 concurrent same-frequency relays).

Secure & Stable

Base station-independent with self-contained encryption.

Flexible Networking

Self-organizing, self-healing, and automatic topology adaptation (chain, star, etc.).

Supports ≥6 nodes in arbitrary topologies.

Complete set includes transmitter, antenna, battery, charger, and individual backpack.

LTE-TDD modulation and H.265 encoding standard.

Low latency design (end-to-end delay <10 ms).

AES128/256 encryption and user-defined encryption.

HD resolution: 1080P, 1080i, 720P, 576i.

Frequency range: 800MHz, 1400MHz; access authentication, anti-interference scanning.

Frequency-hopping minimizes interference.

Operating bands: 300MHz–900MHz, 1.4GHz–2.4GHz.

Channel bandwidth: 5/10/20MHz (adjustable).

Output power: 0.5–5W (auto-adjustable).

Max speed: 40Mbps.

Modulation: LTE/TDD-OFDM (QPSK).

Video compression: H.264/H.265 (adjustable).

Video input: HDMI/WiFi.

Data interface: RJ45 Ethernet with TCP/IP bidirectional transmission.

Image resolution: 576i, 480i (PAL/NTSC), 1080i, 1080P.

Full-duplex intercom with standard K-headphone compatibility.

Transmission range: 2–5 km (urban environment).

Certified with design patents.

Explosion-proof certification: Ex ib IIB T4 Gb.

Front panel indicators: TX/RX status.

Power supply: DC 12V/1A.

Power consumption: 15W.

Battery: 8-hour continuous operation.

Dimensions: 230×160×50mm.

Weight: 1.5kg.
