Integrated Communication System

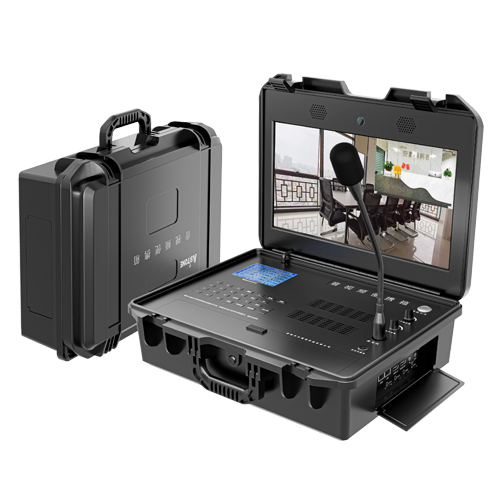

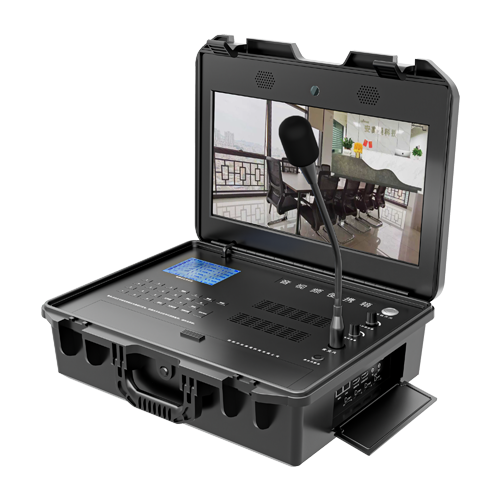

Portable Audio-Video Case AST-C2
Video
Introduce
This portable case integrates audio-video conferencing and multi-network convergence capabilities, enabling "all-in-one storage, instant deployment, and mobile operation." Users can conduct mobile meetings indoors, outdoors, or in vehicles, suitable for defense, smart cities, field inspections, emergency communications, mobile law enforcement, and rapid deployment scenarios.

Feature and advantage
Easy to use

Open the lid, carry the box and go

Integrated, fully functional design

01
High bandwidth

Bandwidth stack

Multi-network simultaneous transmission

02
Standardization

ITU H.323 protocol

IETF SIP protocol

03
High security

Supports signaling and media encryption

AES/ National Secret algorithm

04
High extend

Multiple video input switch

Audio and video output expansion

05
multi-mode

Join a multi-party meeting

Create a multi-party meeting

06
Parameter

Category

Specification

Product Model

AST-C2

Conference Protocol

ITU-T H.323, IETF SIP

Network Interface

Multiple 4G/5G modules, multiple WAN ports (compatible with satellite terminals), multiple LAN ports

Speaker

High-power dual-channel speaker, 1 audio output port

Video Camera

1080P

Microphone

Built-in MIC, external connection supported

Display

HD high-brightness display

External Video Input

HDMI input with arbitrary switching

External Video Output

HDMI output supporting simultaneous display

Wi-Fi

Dual-band Wi-Fi

SIM Slot

Multiple SIM slots

Power Input

DC input port, included charger

Device Firmware

Localized firmware

Built-in Battery

Continuous operation time ≥4 hours, standby time ≥6 hours

Operating Environment

Operating temperature: -20℃ ~ +60℃, humidity: 10% ~ 90%RH (non-condensing)
