Broadband Ad-Hoc Network

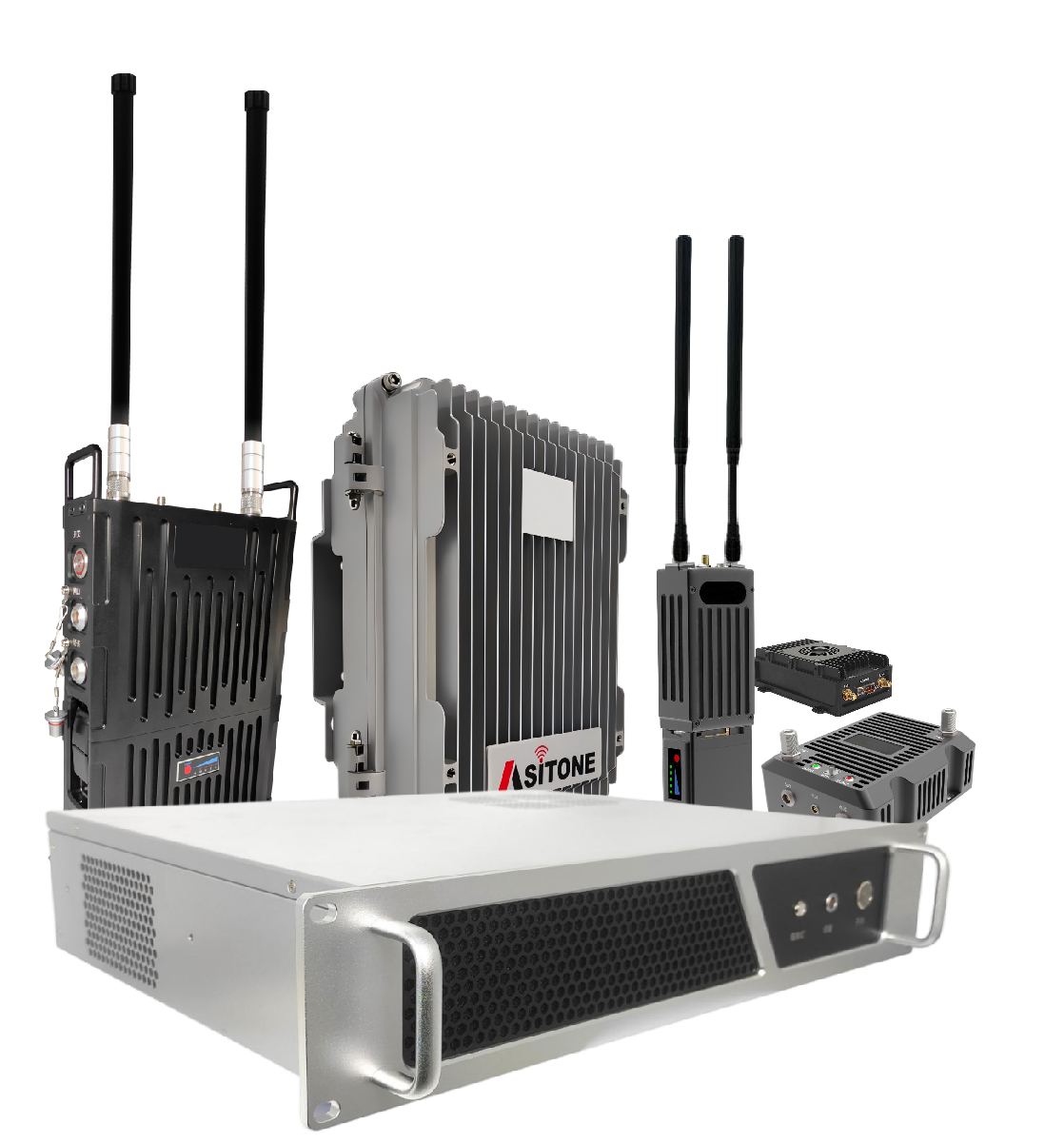

Broadband Ad Hoc Network Series

The broadband Mesh ad hoc network devices adopt the unique COFDM modulation scheme, featuring excellent radio frequency penetration and multipath diffraction transmission performance. In terms of networking capability, a single network can accommodate no less than 32 nodes, putting it among the leading broadband ad hoc network systems worldwide.

The devices support all network topologies such as chain, star, mesh and hybrid dynamic structures, as well as unlimited hops. Meanwhile, the system offers multiple networking modes, including frequency hopping, intelligent frequency selection, multi-frequency grouping and the commonly used co-frequency networking.

It realizes centerless broadband service transmission between mobile nodes (individual soldiers, vehicles, UAVs) and fixed nodes in complex environments. The products are widely used in armed police border defense, national defense security, land-sea communication, government services, emergency rescue, professional communication, outdoor exploration and other scenarios.

Anti-Interference

Robust performance in complex channel environments.

Multi-Hop Support

Extends wireless coverage radius effectively.

Rapid Deployment

Multi-mode functionality.

Plug-and-play operation.

Secure & Stable

Base station-independent.

Self-contained encryption system.

Flexible Networking

Self-organizing and self-healing.

Automatic topology adaptation (chain, star, etc.).

Parameter	AST-M1	AST-M2	AST-M3	AST-M6	AST-M9
Model	AST-M1	AST-M2	AST-M3	AST-M6	AST-M9
Frequency Range	1300-1500MHz (customizable)	1300-1500MHz (customizable)	1300-1500MHz (customizable)	1300-1500MHz (customizable)	1300-1500MHz (customizable)
Modulation Scheme	BPSK/QPSK/16QAM/64QAM (adaptive)	BPSK/QPSK/16QAM/64QAM (adaptive)	BPSK/QPSK/16QAM/64QAM (adaptive)	BPSK/QPSK/16QAM/64QAM (adaptive)	BPSK/QPSK/16QAM/64QAM (adaptive)
Data Rate	Peak 90 Mbps	Peak 90 Mbps	Peak 90 Mbps	Peak 90 Mbps	Peak 90 Mbps
Encryption	AES-128/256 or custom	AES-128/256 or custom	AES-128/256 or custom	AES-128/256 or custom	AES-128/256 or custom
Transmit Power	2W×2 (adjustable), dual antennas	10W×2 (adjustable), dual antennas	10W×2 (adjustable), dual antennas (20W×2 customizable)	10W×2 (adjustable), dual antennas (20W×2 customizable)	2W×2 (adjustable), dual antennas
Receiver Sensitivity	-100 dBm @ 5 MHz	-100 dBm @ 5 MHz	-100 dBm @ 5 MHz	-100 dBm @ 5 MHz	-100 dBm @ 5 MHz
Networking Capacity	≥ 64 nodes	≥ 64 nodes	≥ 64 nodes	≥ 64 nodes	≥ 64 nodes
Power Supply	Battery-powered (removable battery)	Battery-powered (removable battery)	External power supply (AC 220V)	External power supply (AC 220V)	External power supply (DC 12V-24V)
Control Functions	Supports network management system platform	Supports network management system platform	Supports network management system platform	Supports network management system platform	Supports network management system platform

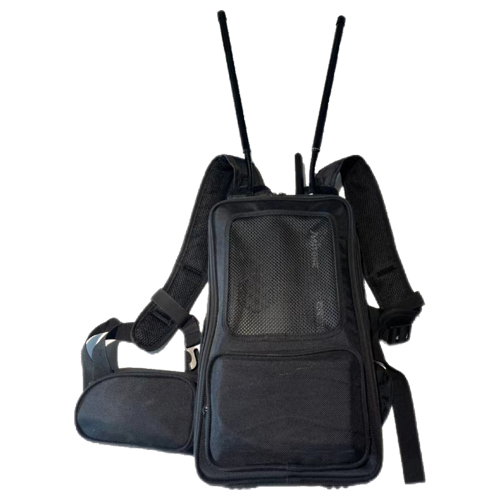

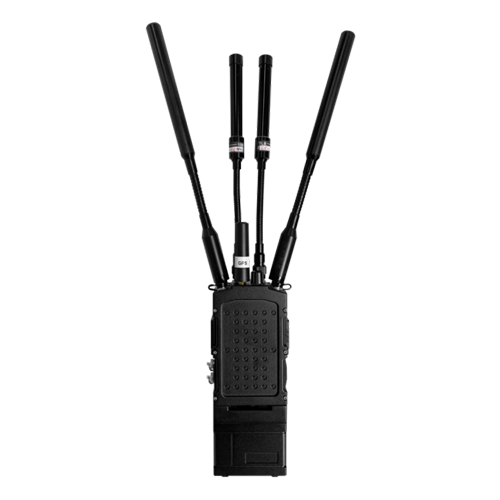

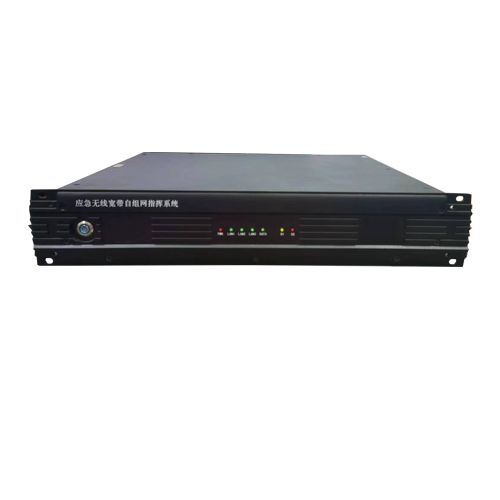

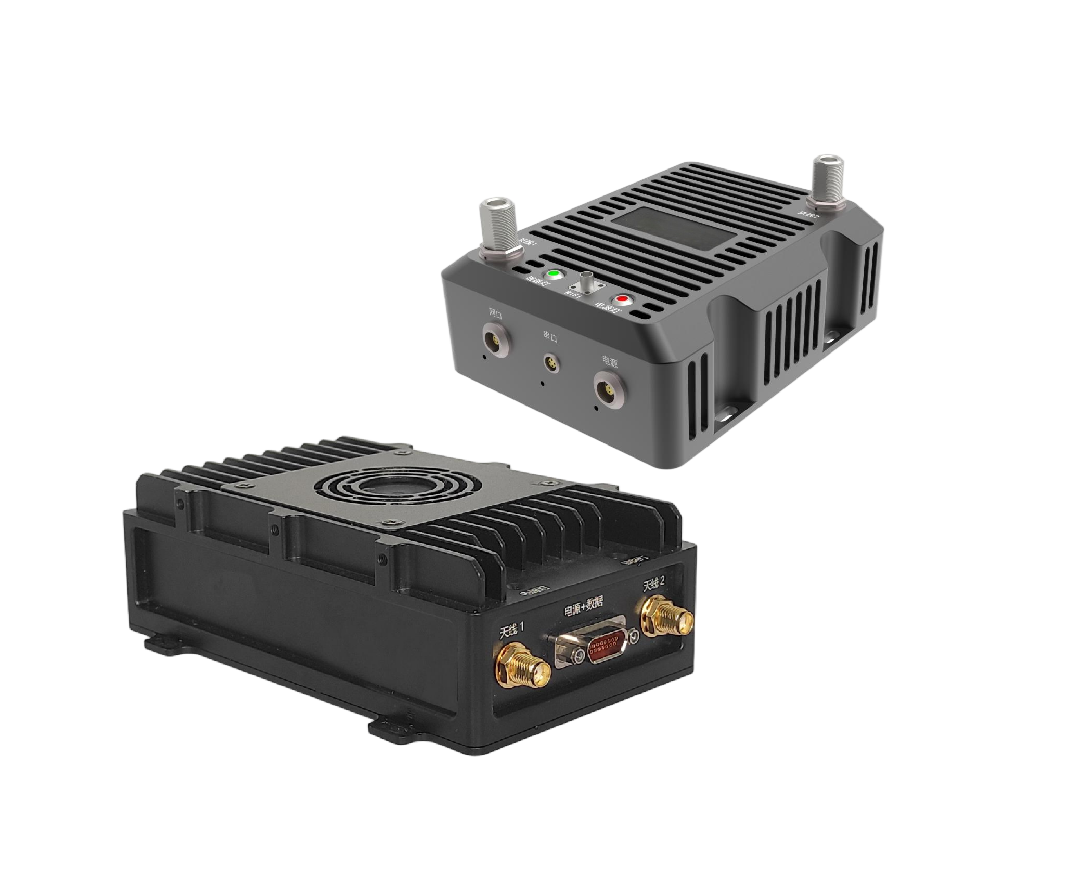

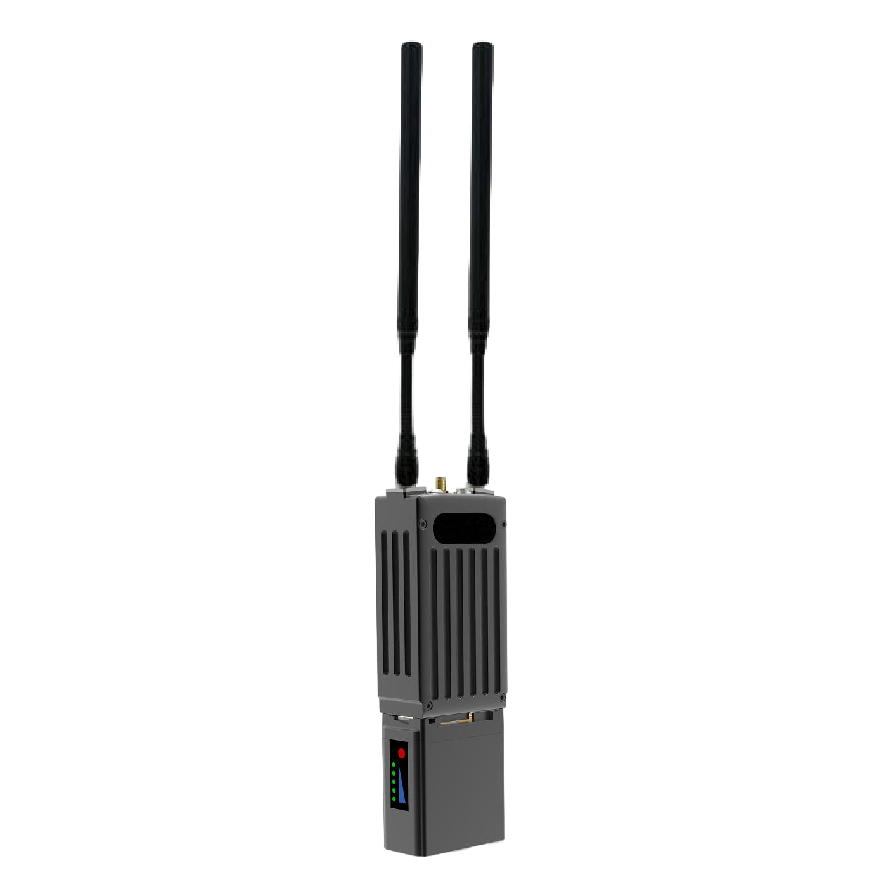

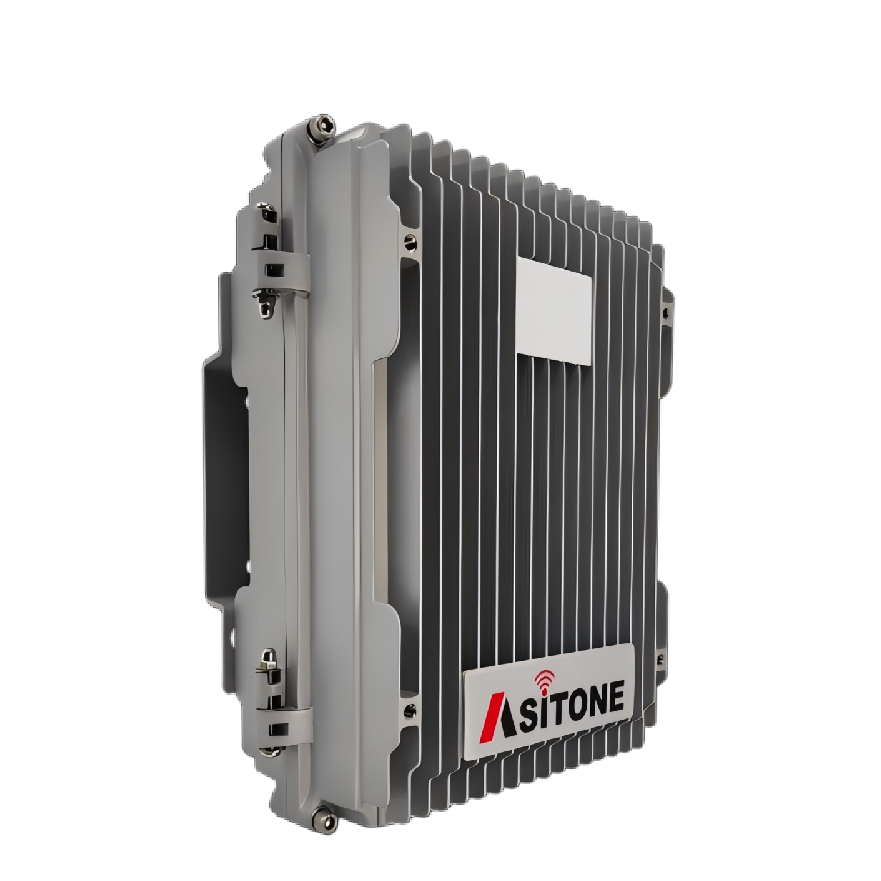

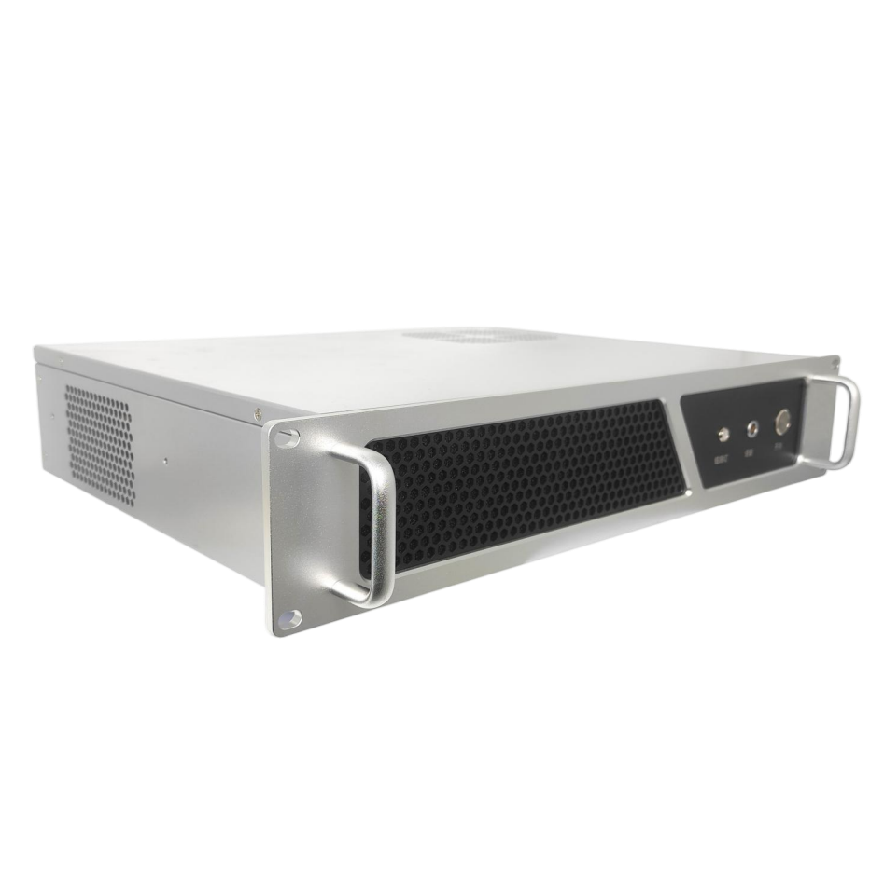

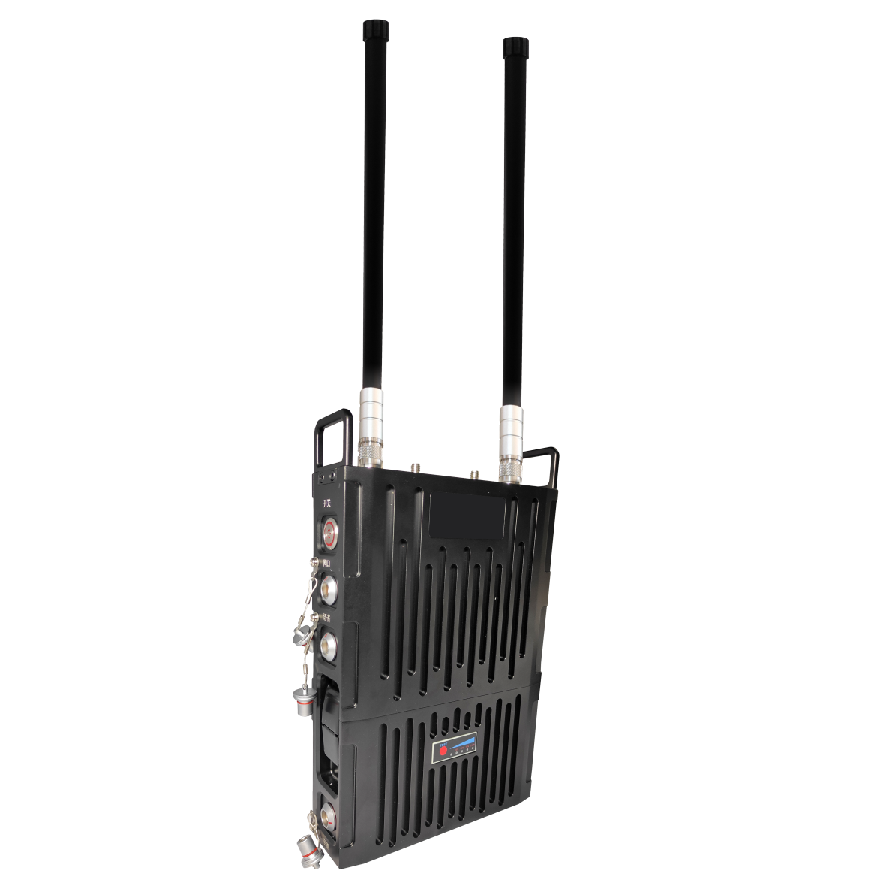

Mounting Type	Handheld	Backpack	Fixed	Vehicle-mounted	Airborne
Environmental Specs	\multicolumn{5}{c}{Operating Temperature: -20°C ~ +60°C; Operating Humidity: 10%-90% RH (non-condensing)}
